Philips Advance LED Electronic Driver INTA 0530C 280 DO 150 Watts 0-10 Dimming

Philips Advance LED Electronic Driver INTA 0530C 280 DO 150 Watts 0-10 Dimming

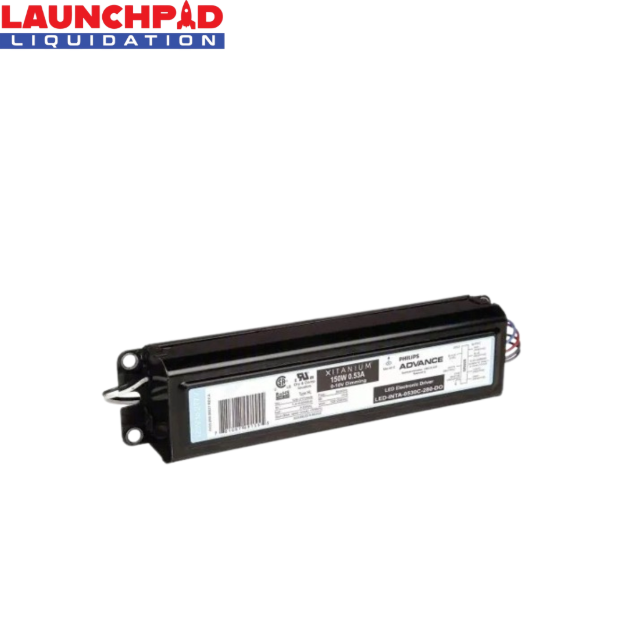

The Philips Advance LED Electronic Driver INTA 0530C 280 DO is a high-performance LED driver designed to power a variety of LED lighting systems. It supports both AC and DC power inputs, making it suitable for indoor and outdoor applications. With advanced dimming capabilities and protective features, this driver ensures efficient and reliable power delivery for long-term use.

FEATURES:

• Wide Voltage Range (AC and DC): Operates with both AC (120-277V) and DC (120-280V) input, making it versatile for grid or renewable energy setups.
• High Efficiency: Ensures minimal power losses, reducing energy consumption and operational costs.
• Durable and Reliable: Built for long-term use in demanding environments, including industrial and outdoor settings.
• Compact Design: Fits easily within fixtures for flexible installation.
• Compliance: Meets safety and performance standards for LED driver ballasts.

• Applications:
  • Indoor and outdoor LED lighting (warehouses, commercial spaces, parking lots, streets).
  • Solar and off-grid systems, with DC power support.
  • Dimmable LED systems (where applicable).

SPECIFICATIONS:

Brand: ADVANCE
Intended LED Usage: LED Fixture Array
Brand and Series: Xitanium
Input Voltage (AC): 120 to 277V AC
Output Voltage (DC): 120 to 280V DC
Input Current: 1.40/0.60 AAC
Output Current: 0.53 ADC
Input Power: 165W
Power Output: 150W
Length: 9-1/2 in
Width: 2-3/8 in
Height: 1-1/2 in
Case Form Factor: Long
Profile: Standard Profile
Driver Class: Class 2
Driver Mounting Location: Within Fixture
Dimming: Yes
Dimming Method: 0-10V
Dimming Range: 100% to 10%
Dimming Type: Full Continuous Dimming
Ambient Temperature Range: -40°F to 131°F
Max Case Temp: 176°F
Power Factor: 0.9
Output Constant: Programmable
Output Technology: Programmable
Total Harmonic Distortion: Max 20%
Environmental Rating: Damp Location; Dry Location
Standards: UL1012
For Use With: LED Lighting
UNSPSC: 39111801
Country of Origin: Mexico (subject to change)

PACKAGE INCLUDES:

• 1x Philips Advance LED Electronic Driver INTA 0530C 280 DO (150 Watts)
